How Do Electric Car Charging Stations Work?

With the rising cost of fuel and increasing government incentives, electric vehicles (EVs) have emerged as a cost-effective and environmentally friendly alternative to traditional gasoline-powered cars. One of the key components enabling the widespread adoption of EVs is EV charging stations. Understanding how these stations function is essential for new and prospective EV owners.

What Are EV Charging Stations?

EV charging stations are dedicated facilities that supply electricity to recharge electric vehicle batteries. These stations draw power from the electrical grid and convert it into a suitable form for charging an EV. They play a crucial role in supporting the electric mobility ecosystem by offering convenient and efficient charging solutions for EV owners.

Types of EV Charging Stations

Level 1 Chargers

• Typically included with an EV purchase.
• Uses a standard 120V household outlet.
• Requires no special installation but charges at a slow rate (adding about 3-5 miles of range per hour).
• Best suited for overnight charging or users with low daily mileage.

Level 2 Chargers

• Requires a 240V circuit, similar to large household appliances like dryers and ovens.
• Charges much faster than Level 1 (adding 10-60 miles of range per hour).
• Installation may require an electrician to upgrade wiring and obtain necessary permits.
• Commonly installed in private garages, workplaces, and public areas.

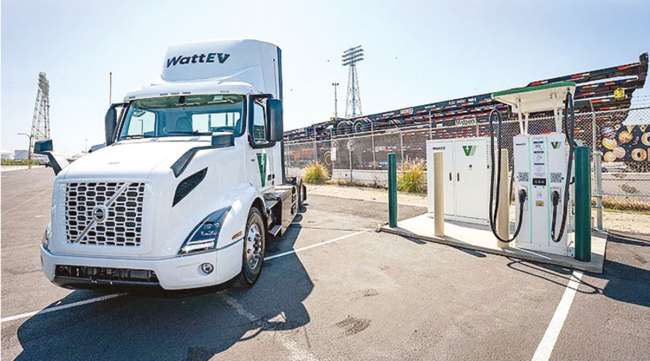

Level 3 Chargers (DC Fast Chargers/Superchargers)

• The fastest charging option, delivering high-power DC electricity directly to the EV battery.
• Can recharge up to 100 miles of range in less than 30 minutes.
• Requires a 480V electrical supply, making it impractical for home installation.
• Mostly found along highways, at commercial hubs, and in industrial areas.

How to Use Public EV Charging Stations

For long-distance travel or daily commutes, EV owners often rely on public charging stations. Below is a step-by-step guide on how to use them effectively.

1. Identify the Right Charging Cable and Connector Type

EVs use different connector types, and it is crucial to match the connector at the charging station with your vehicle's port.

Common EV Charging Connector Types

• SAE J1772 (Type 1) – Common in North America and Japan for Level 1 and Level 2 AC charging.
• Type 2 (Mennekes) – Standard in Europe, supporting single-phase and three-phase AC charging.
• CCS (Combined Charging System) – A Type 2 plug with additional pins for fast DC charging.
  • CCS1: Used in North America (J1772 + DC fast charging pins).
  • CCS2: Used in Europe (Type 2 + DC fast charging pins).
• CHAdeMO – A Japanese DC fast-charging standard, known for bidirectional charging capabilities.
• GB/T – The standard used in China for both AC and DC charging.

Each connector type comes with built-in safety features, preventing electrical hazards such as overcurrent, ground faults, and overheating.

2. Download an EV Charging App

Most public EV charging networks have dedicated mobile apps that help users locate stations, check availability, and initiate charging sessions. Registering an account on these platforms simplifies payment and enhances user convenience.

3. Start the Charging Process

Once you’ve located an available charger and connected your vehicle:

• Follow on-screen instructions on the charger.
• Use the app, an RFID card, or a credit card to initiate charging.
• The charger display will confirm that charging has started.

4. Monitor and Complete the Charging Session

• EV charging station screens provide real-time updates on charging progress.
• Some apps notify you when charging is complete or when your desired charge level is reached.
• Once charged, end the session, pay (if applicable), and safely remove the charging connector.

5. Payment and Charging Costs

• Payment options include credit cards, RFID tags, or mobile apps.
• Some stations require membership or offer subscription-based pricing models.
• Charging costs vary depending on charging speed, location, and electricity rates.

Conclusion

EV charging stations are an essential part of the electric vehicle ecosystem, enabling convenient and efficient recharging for EV owners. Understanding the different charging levels, connector types, and the process of using public stations helps users make informed decisions. As charging infrastructure continues to expand, EV adoption is expected to rise, further promoting sustainable transportation solutions.

Frequently Asked Questions (FAQs)

1. How do EV charging stations supply power to vehicles?
EV charging stations draw electricity from the power grid and convert it to a suitable voltage and current level for recharging an EV’s battery.

2. What is the difference between Level 1, Level 2, and Level 3 charging?

• Level 1: Uses a standard 120V outlet, slow charging.
• Level 2: Requires 240V, faster than Level 1.
• Level 3 (DC Fast Charging): Requires 480V, provides rapid charging.

3. Can I install a Level 3 charger at home?
No, Level 3 chargers require high-voltage electrical infrastructure, making them impractical for residential installation.

4. How do I find public EV charging stations?
Most EV charging networks provide mobile apps and online maps to help users locate nearby charging stations.

5. What payment methods do public charging stations accept?
Payments can be made via credit cards, mobile apps, or RFID access cards, depending on the network provider.
