In transportation, cars traditionally rely on gasoline as their primary fuel source. Refueling has been a relatively straightforward process with various types of gasoline available, such as regular, mid-grade, premium, or even diesel.

However, as society advances and governments push for greener alternatives, the electric vehicle (EV) market is experiencing exponential growth. Unlike traditional fuel-powered vehicles, the charging process for electric cars is not as simple.

When it comes to electric vehicles, there are several factors to consider. Each electric vehicle has unique charging specifications, accepting different amounts of electricity.

Moreover, various types of connectors are used for charging, adding another complexity layer. However, the most significant distinction lies in the different electric vehicle charging levels, determining the time it takes to charge an electric vehicle fully.

Understanding these distinctions and concepts can be challenging for many individuals. In the following chapters, we will delve into a detailed exploration of the various types of charging stations.

Level 1 Charging Stations

Level 1 charging stations are the most basic electric vehicle (EV) charging setup type. They utilize a standard household 120V AC outlet and are commonly found in residential settings. The pros and cons of Level 1 charging include the following:

Its advantage and disadvantages

The following are its advantages

  1. Accessibility. Level 1 charging stations can be used with a standard household outlet, making them widely available and convenient for EV owners.
  2. Cost-effective. No additional infrastructure or electrical upgrades are needed, reducing installation costs.
  3. Suitable for overnight charging. Level 1 charging is ideal for charging EVs overnight or during extended parking periods.

The following are its disadvantages.

  1. Slow charging speed. Level 1 charging operates relatively slowly, delivering around 2-5 miles of range per hour. This may not be sufficient for users with high daily mileage requirements.
  2. Long charging times. Due to the slow charging speed can take several hours or even overnight to charge an electric vehicle fully.
  3. It limited charging capacity. Level 1 charging may not be compatible with higher-capacity electric vehicles that require faster charging options.

Charging Speed and Power Output

Level 1 charging delivers power to the vehicle at a rate of 2-5 miles of range per hour of charging. The charging speed depends on the specific car and its onboard charger capabilities. This charging level is typically suited for daily commuting and low-mileage applications.

Typical Application Scenarios and Charging Needs

Level 1 charging is commonly used in residential settings, such as single-family homes, townhouses, or apartment complexes, where EV owners can conveniently charge their vehicles overnight. It suits individuals with predictable driving patterns and moderate daily mileage requirements.

Connector Type

Level 1 charging often utilizes a standard Level 1 charging cable with a standard J1772 connector, which is compatible with most electric vehicles.

Guide for Installing and Using Level 1 Charging Stations

  1. Finding a suitable power outlet
  • Locate a grounded 120V AC outlet near the parking area or garage where the vehicle will be charged.
  • Ensure the outlet is dedicated to the charging station and can handle the electrical load without overloading the circuit.

2. Plugging in the charging cable and vehicle

  • Connect one end of the Level 1 charging cable (usually provided with the vehicle) to the electric vehicle’s charging port.
  • Plug the other end of the charging cable into the 120V AC outlet.

3. Determining charging time and safety precautions

  • Consider the vehicle’s battery capacity and charging efficiency to estimate the time required for a full charge.
  • Adhere to safety precautions, such as ensuring the charging cable is in good condition, avoiding overloading the electrical circuit, and following any specific guidelines provided by the vehicle manufacturer.

Level 2 Charging Stations

Level 2 charging stations are a higher-powered option for electric vehicle (EV) charging than Level 1 stations. They require a dedicated 240V AC power circuit and offer faster charging speeds. It belongs to ac ev charger.

Its advantages and disadvantages

The following are its advantages.

  1. Faster charging speed. Level 2 charging delivers power to the vehicle at a higher rate, typically providing around 10-30 miles of range per hour of charging.
  2. Versatility. Level 2 charging stations can be used in various settings, including residential, commercial, and public locations.
  3. It increased charging capacity. Level 2 charging is compatible with a wide range of electric vehicles, including those with larger battery capacities that require faster charging options.

The following are its disadvantages.

  1. Installation requirements. Level 2 charging stations require a dedicated 240V power circuit, which may involve professional electrical installation and potential costs.
  2. Limited charging speed compared to DC fast charging. Although faster than Level 1 charging, Level 2 charging is slower than DC fast charging, limiting long-distance travel needs.

Charging Speed and Power Output

Level 2 charging delivers power to the vehicle at a rate of around 10-30 miles of range per hour of charging, depending on the specific charging station and the vehicle’s onboard charger capabilities. The charging speed is significantly faster than Level 1, allowing quicker charging times.

Commercial and Public Applications

Level 2 charging stations are standard in commercial and public locations, such as shopping centers, workplaces, parking lots, and public charging networks. These stations cater to the charging needs of a broader range of electric vehicle users, including fleet vehicles and the general public.

Home and Residential Charging Needs

Level 2 charging is also suitable for residential applications, especially for EV owners with higher daily mileage requirements. It provides faster charging at home, enabling quicker turnaround times for the vehicle to be fully charged and ready for everyday use.

Connector Type

Level 2 charging stations use various connector types, depending on the region and charging standards. The most common connector types for Level 2 charging include:

  1. J1772

This connector type is widely used in North America and is compatible with most electric vehicles. It features a standard plug for connecting the charging cable to the car.

2. Type 2 (Mennekes)

This connector type is prevalent in Europe and is compatible with many European electric vehicle models. It provides a secure and reliable connection between the charging station and the vehicle.

3. Tesla Connector (Tesla Wall Connector)

This connector type is specific to Tesla vehicles and is used with Tesla’s proprietary charging stations. It provides a high-power charging solution for Tesla owners.

It’s important to note that some Level 2 charging stations may offer multiple connector options, allowing for compatibility with various electric vehicle models. When choosing a Level 2 charging station, consider the connector type required by your specific electric vehicle to ensure compatibility and seamless charging experiences.

Guide for Installing and Using Level 2 Charging Stations

  1. Installing a dedicated 240V power circuit
  • Consult a qualified electrician to install a dedicated 240V power circuit with the appropriate electrical capacity to support Level 2 charging.
  • Ensure the electrical panel can handle the increased load and obtain necessary permits or approvals.

2. Selecting the appropriate charger and plug type

Research and choose a Level 2 charging station compatible with your electric vehicle, considering factors such as connector type, charging capacity, and additional features.

3. Considering charging power and time

  • Determine the desired charging power based on your vehicle’s charging capabilities and charging time requirements.
  • Remember that higher charging power may require specific electrical upgrades or modifications.

4. Maintenance and safety precautions

  • Follow the manufacturer’s guidelines for maintenance and periodic inspections of the charging station.
  • Ensure the charging cable is in good condition and free from damage or wear.
  • Adhere to safety precautions, such as adequately grounding the charging station and following all electrical and safety codes.

Level 2 charging stations provide a faster and more versatile charging option for electric vehicle owners. Whether in commercial/public, or residential settings, Level 2 charging meets the needs of EV users with higher mileage requirements.

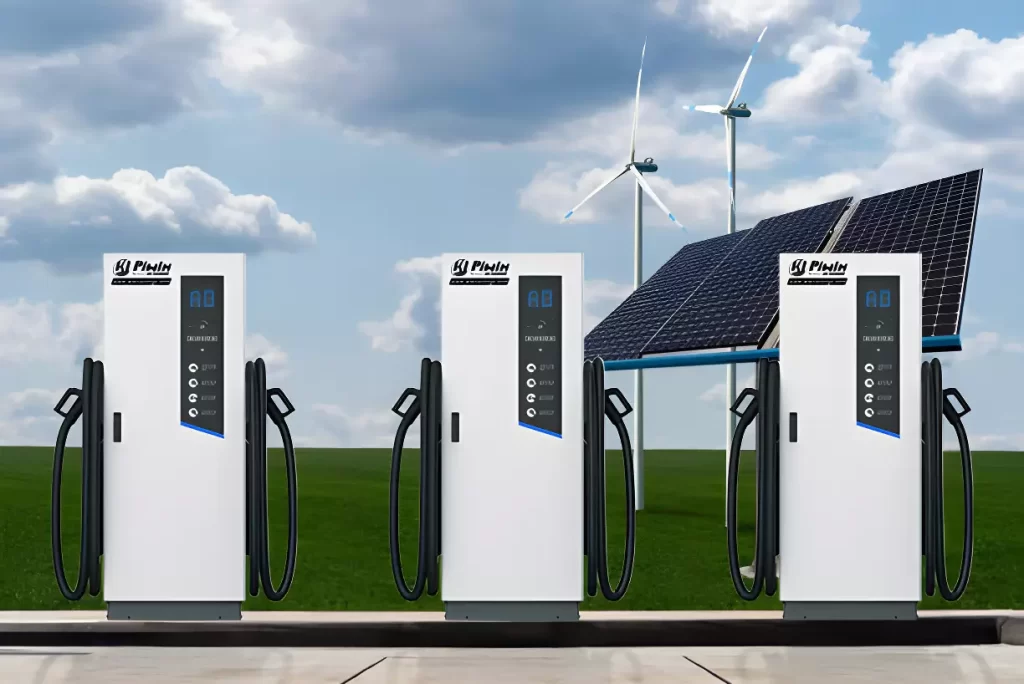

DC Fast Charging Stations

DC Fast Charging stations, or Level 3 charging stations, provide high-powered charging capabilities for electric vehicles. These stations are designed to deliver a significant amount of direct current (DC) power to charge EV batteries quickly. DC Fast Charging stations are commonly found along highways, urban areas, and at rest stops, catering to long-distance travel and fast charging requirements. Click here to learn more about it.

Its working principle

How does the dc fast charger work? In a DC circuit, the current flows in a closed loop from the positive terminal to the negative terminal. This unidirectional flow is driven by a power source or battery’s potential difference (voltage), causing the electron flow to move from one polarity to another.

The DC’s stability depends on the voltage provided by the power source or battery and the resistance in the circuit. In a stable DC circuit, the voltage and resistance remain constant, ensuring a steady and consistent flow of electrons.

Charging Speed and Power Output

DC Fast Charging stations offer significantly faster charging speeds than Level 2 charging. They can deliver power from 50 kW to 350 kW or more, enabling EVs to charge much quicker. It means that it can finish setting in 1 hour.

Long-Distance Travel and Fast Charging Needs

DC Fast Charging stations are essential for long-distance travel with electric vehicles. They provide the necessary charging infrastructure for EV owners to embark on extended trips, allowing them to quickly recharge the vehicle’s battery during pit stops. These stations are strategically located along major highways or high-traffic areas to facilitate seamless long-distance travel.

Connector Type

Two primary competing DC fast charging standards are CHAdeMO and Combined Charging System (CCS). CHAdeMO is a Japanese-developed standard widely adopted by Asian automakers, while CCS is an international standard many European and North American automakers embrace.

These standards differ in terms of connector design and communication protocols. However, many modern DC Fast Charging stations now feature dual connectors, accommodating CHAdeMO and CCS standards to provide compatibility for a broader range of electric vehicles.

Guide for Installing and Using DC Fast Charging Stations

  1. Finding Suitable Station Locations and Power Access
  • Identify high-traffic areas, highways, and strategic locations for installing DC Fast Charging stations.
  • Ensure access to a sufficient electrical power supply capable of meeting the station’s power requirements.

2. Determining Compatible Charging Interfaces and Connectors

  • Select DC Fast Charging stations that support CHAdeMO and CCS standards or specific connector types based on the prevalent electric vehicle models in the region.
  • Verify compatibility between the station’s connectors and the EV’s charging interface to ensure a successful charging connection.

3. Understanding Fast Charging Safety and Best Practices

  • Educate users about safe charging practices, including properly handling connectors, following manufacturer guidelines, and avoiding hazardous charging conditions.
  • Emphasize the importance of adhering to electrical safety standards, grounding, and protection against overcurrent and overheating.

4. Monitoring Charging Status and Troubleshooting

  • Implement a monitoring system to track charging sessions, including real-time status updates, duration, and potential issues.
  • Establish a mechanism for users to report problems, allowing for prompt troubleshooting and resolution.

DC Fast Charging stations provide an essential solution for long-distance travel and fast charging in the electric vehicle market. Operators can effectively install and operate DC Fast Charging stations by considering location, power access, compatible charging interfaces, and implementing safety measures. This enables EV owners to enjoy convenient and rapid charging experiences while on the road.

The future trends of EV charging stations

  1. Advancements in charging technology. Faster charging speeds, high-power charging, and ultra-fast charging will be critical areas of development.
  2. Expansion of EV charging station networks. More investment will be made to expand the charging infrastructure, focusing on public areas, highways, parking facilities, and workplaces.
  3. Development of emerging technologies. Wireless charging and vehicle-to-grid (V2G) technology are expected to play significant roles in the future of EV charging.
  4. Harmonization of charging standards. Standardization and interoperability among different charging networks will simplify the charging process for EV owners.

Overall, the future of EV charging stations will involve faster charging, increased availability, integration with renewable energy sources, and the adoption of innovative technologies. These advancements will contribute to the widespread adoption of electric vehicles and a more sustainable transportation ecosystem.

Conclusion

In conclusion, the EV charging stations are Level 1, Level 2, and DC fast charging stations. Each type offers different charging speeds and is suitable for specific charging needs.
